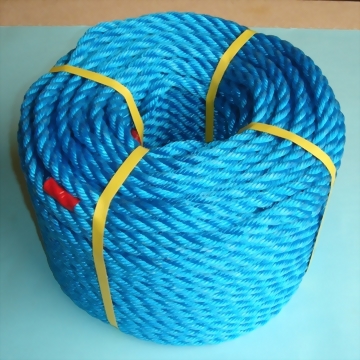

Polypropylene (PP) Danline Rope

型號 : MD-RP012

數量 :

POLYPROPYLEN E TWIST ROPE

COLOR & MADE UP CAN BE AS PER CUSTOMER'S REQUIREMENT.
DIA		CIR	WEIGHT	BREAKING STRENGTH
(mm)	(inch)	(inch)	(kgs)	(kgs)
3	1/8	3/8	0.90	120
4	5/32	1/2	1.50	190
5	3/16	5/8	2.36	300
6	1/4	3/4	3.40	400
7	9/32	7/8	4.65	550
8	5/16	1	6.10	700
9	3/8	1-1/8	7.80	860
10	13/32	1-1/4	9.60	1,100
11	7/19	1-3/8	11.0	1,600
12	15/32	1-1/2	13.8	1,720
13	1/2	1-5/8	16.5	1,900
14	9/16	1-3/4	18.4	2,100
16	5/8	2	24.0	2,700
18	23/32	2-1/4	30.5	3,300
19	3/4	2-3/8	33.5	3,600
20	13/16	2-1/2	37.6	4,000
22	7/8	2-3/4	45.6	4,800
24	15/16	3	54.0	5,600
25	1	3-1/8	59.0	6,100
26	1-1/32	3-1/4	64.0	6,500
28	1-1/8	3-1/2	74.0	7,500
30	1-3/16	3-3/4	85.0	8,500
32	1-1/4	4	96.0	9,600
34	1-11/32	4-1/4	109.0	10,700
36	1-7/16	4-1/2	122.0	11,900
38	1-1/2	4-3/4	136.0	13,100
40	1-19/32	5	150.0	14,400
42	1-21/32	5-1/4	166.0	15,800
44	1-3/4	5-1/2	182.0	17,000
45	1-25/32	5-5/8	190.0	18,000
50	2	6-1/4	235.0	21,800
