尼龍編織繩

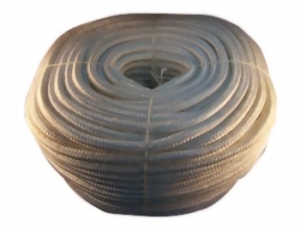

Nylon Braided Rope
PRODUCT DESCRIPTION
●It's 16 braids with center core and constructed of 100% nylon fiber in all components. The jacket is manufactured with a high number of stitches per inch which results in a firmer feel, high tensile strength and superior abrasion resistance. It's designed for the more demanding applications where higher abrasion resistance and tensile strength are required
●Color: Natural white. Or Color Natural White color with Blue or Red Tracers.
PACKING : on coils or plastic flanged spools.
Length can be as per customer's demand.
| DIA. | WEIGHT | LENGTH | BREAKING STRENGTH |
| 3 m/m | 1.3 KGS | 200M | 250KGS |
|---|---|---|---|
| 4 m/m | 2.2 KGS | 200M | 450KGS |
| 5 m/m | 3.4 KGS | 200M | 680KGS |
| 6 m/m | 5.0 KGS | 200M | 1040KGS |
| 7 m/m | 6.6 KGS | 200M | 1300KGS |
| 8 m/m | 8.5 KGS | 200M | 1540KGS |
| 9 m/m | 11 KGS | 200M | 2200KGS |
| 10 m/m | 13.2 KGS | 200M | 2900KGS |
| 11 m/m | 17 KGS | 200M | 3000KGS |
| 12 m/m | 19 KGS | 200M | 3700KGS |
| 13 m/m | 21 KGS | 200M | 3850KGS |
| 14 m/m | 27 KGS | 200M | 5300KGS |
| 16 m/m | 36 KGS | 200M | 6800KGS |
| 18 m/m | 43 KGS | 200M | 8000KGS |
| 19 m/m | 45 KGS | 200N | 8600KGS |
| 20 m/m | 53 KGS | 200M | 9400KGS |
