圓盤型貫通式

型號 : MD-FL001

數量 :

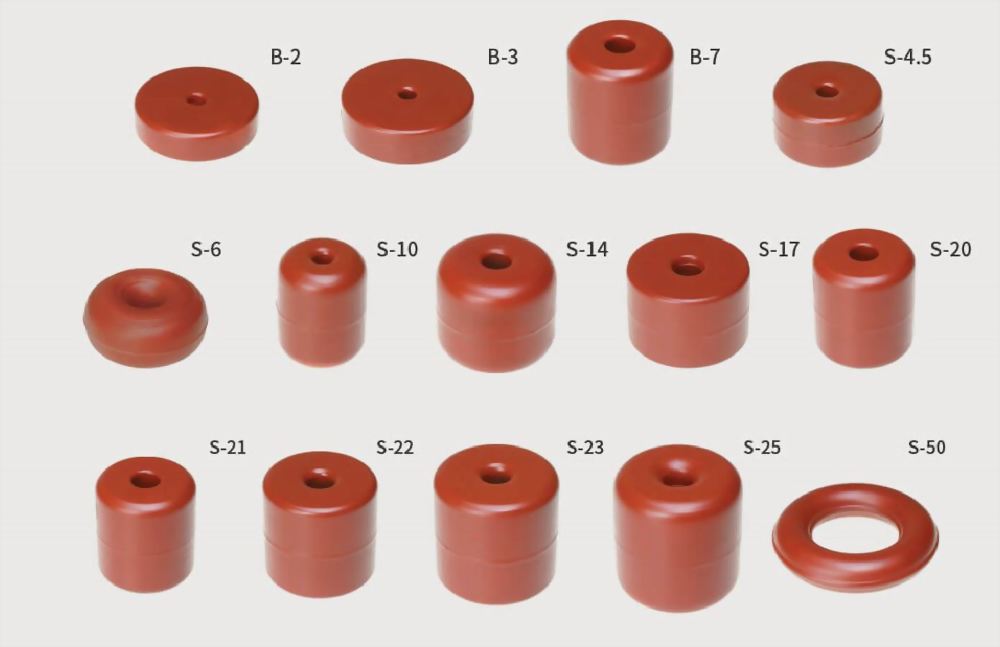

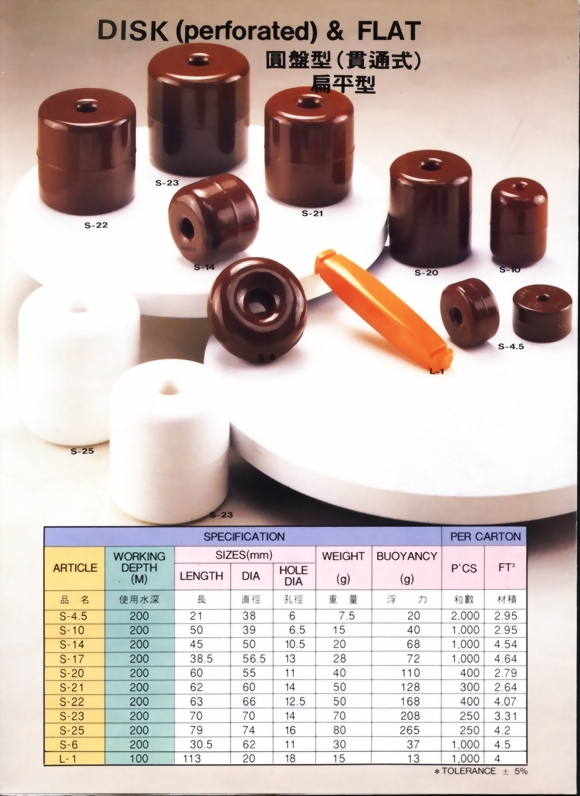

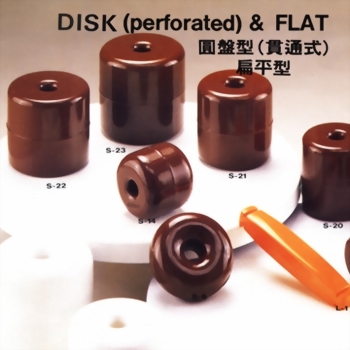

DISK (PERFORATED & FLAT PLASTIC FLOATS							PER CARTON
MODEL #	Working Depth (M)	Weight(g)			Weight(g)	Buoyancy(g)	P'CS	Ft3
MODEL #	Working Depth (M)	Length	Dia	Hole Dia	Weight(g)	Buoyancy(g)	P'CS	Ft3
S-4.5	200	21	38	6	7.5	20	2000	2.95
S-10	500	50	39	6.5	15	40	100	2.95
S-14	200	45	50	10.5	20	68	1000	4.54
S-17	100	38.5	56.5	13	28	72	1000	4.64
S-20	400	60	55	11	40	110	400	2.79
S-21	1000	62	60	14	50	128	300	2.64
S-22	400	63	66	12.5	50	168	400	4.07
S-23	400	70	70	14	70	208	250	3.31
S-25	400	79	74	16	80	265	250	4.2
S-6	400	30.5	62	11	30	37	1000	4.5
L-1	100	113	20	18	15	13	1000	4
B-2	200	20	76	10	37.5	60	600	2.86
B-3	200	25	82	10	43	50	350	2.47
B-7	200	65	60	15	48	129	250	2.48

圓盤型 & 扁平型浮球規格如上.
